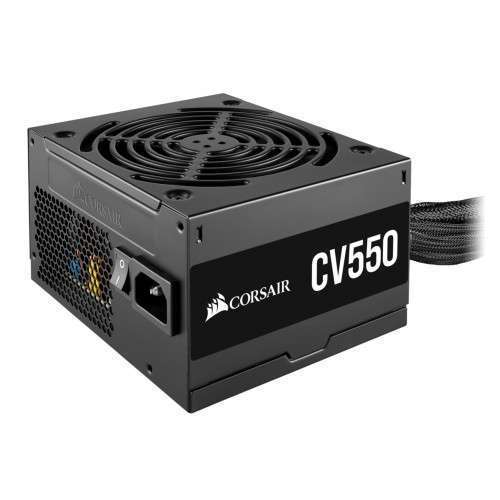

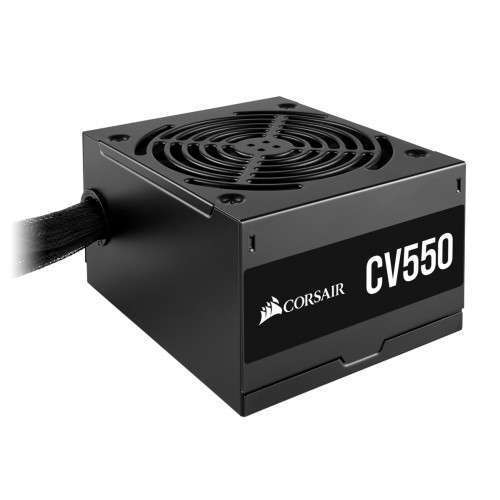

CORSAIR CV550 550W 80 PLUS BRONZE CERTIFIED POWER SUPPLY
General:
Brand
Corsair
Model
Corsair CV Series CV550
Series
CV Series
PSU Category
Non Modular
Type
ATX12V v2.31
Part No
CP-9020210-UK
Cooling & Lighting:
Fan Size
120mm
Fan Bearing
Sleeve Bearing
Performance:
Efficiency
88% Efficiency
Efficiency Rating
80 Plus Bronze
Protection:
Protection
OVP, OPP, OTP, SCP, UVP
Over Voltage Protection (OVP)
Yes
Over Power Protection (OPP)
Yes
Over Temperature Protection (OTP)
Yes
Short Circuit Protection (SCP)
Yes
Connectors:
ATX Main Connectors
1
EPS Connectors
1
PCIe Connectors
2
SATA Power Connectors
7
Floppy Connectors
1
Power:
Maximum Power
550 Watt
Input Voltage
100 – 240V
Input Frequency Range
47Hz – 63Hz
Input Current
10A-5A
Operating Temperature
30 degree C
Physical Description:
Cable Type
Sleeved and Flat Black Cables
MTBF
100,000 hours
Form Factor
ATX
Dimensions
150 x 86 x 125mm
Color
Black
Warranty:
Warranty
5 Years Replacement Warranty
Additional Info:
Country Of Origin
Taiwan
Made in/ Assemble
China
Brand – Corsair, Model – Corsair CV Series CV550, Series – CV Series, PSU Category – Non Modular, Type – ATX12V v2.31, Maximum Power – 550 Watt, Input Voltage – 100-240V, Input Frequency Range – 47-63Hz, Input Current – 10A-5A, Fan Size – 120mm, Fan Bearing – Sleeve Bearing, Efficiency – 88% efficiency, 80 Plus Rating – 80 Plus Bronze, Protection – OVP, OPP, OTP, SCP, UVP, Over Voltage Protection (OVP) – Yes, Over Power Protection (OPP) – Yes, Over Temperature Protection (OTP) – Yes, Short Circuit Protection (SCP) – Yes, Under Voltage Protection (UVP) – Yes.
